iCarsoft HD V4.0 Review: Enough Truck Scanner for an Owner-Operator or Small Fleet?

A truck that sits on the shoulder with a warning light costs far more per hour than a car does. That is why heavy-duty scan tools usually cost four figures and arrive with a yearly renewal bill. The HD V4.0 asks for $462.95 once, and the question for an owner-operator is how much of the dealer visit it replaces.

One honest note first. This review rests on the maker's documentation, its comparison with the older HD V3.0 and retailer listings. We have not yet run this unit on a truck in our own yard, and independent write-ups are almost nonexistent, so we label maker figures as such.

The brand list is the product

Heavy-duty diagnostics lives or dies on which engine and chassis brands a tool speaks. The HD V4.0 comes with 37 pre-installed, including Cummins, Detroit, Freightliner, Caterpillar, Volvo, Kenworth, Peterbilt, Mack, International, Paccar, Scania, DAF and Allison, plus ABS and brake names such as Bendix, Haldex and Wabco.

That is a solid list for North American road trucks. If your engine is in it, the tool is a candidate. If not, check the extension list before you pay.

The extensions are the catch. The page lists 34 more packages, including John Deere, Case, New Holland and Volvo CE, sold separately and activated on the device over Wi-Fi. Prices are not shown on the page, so ask before you count on them.

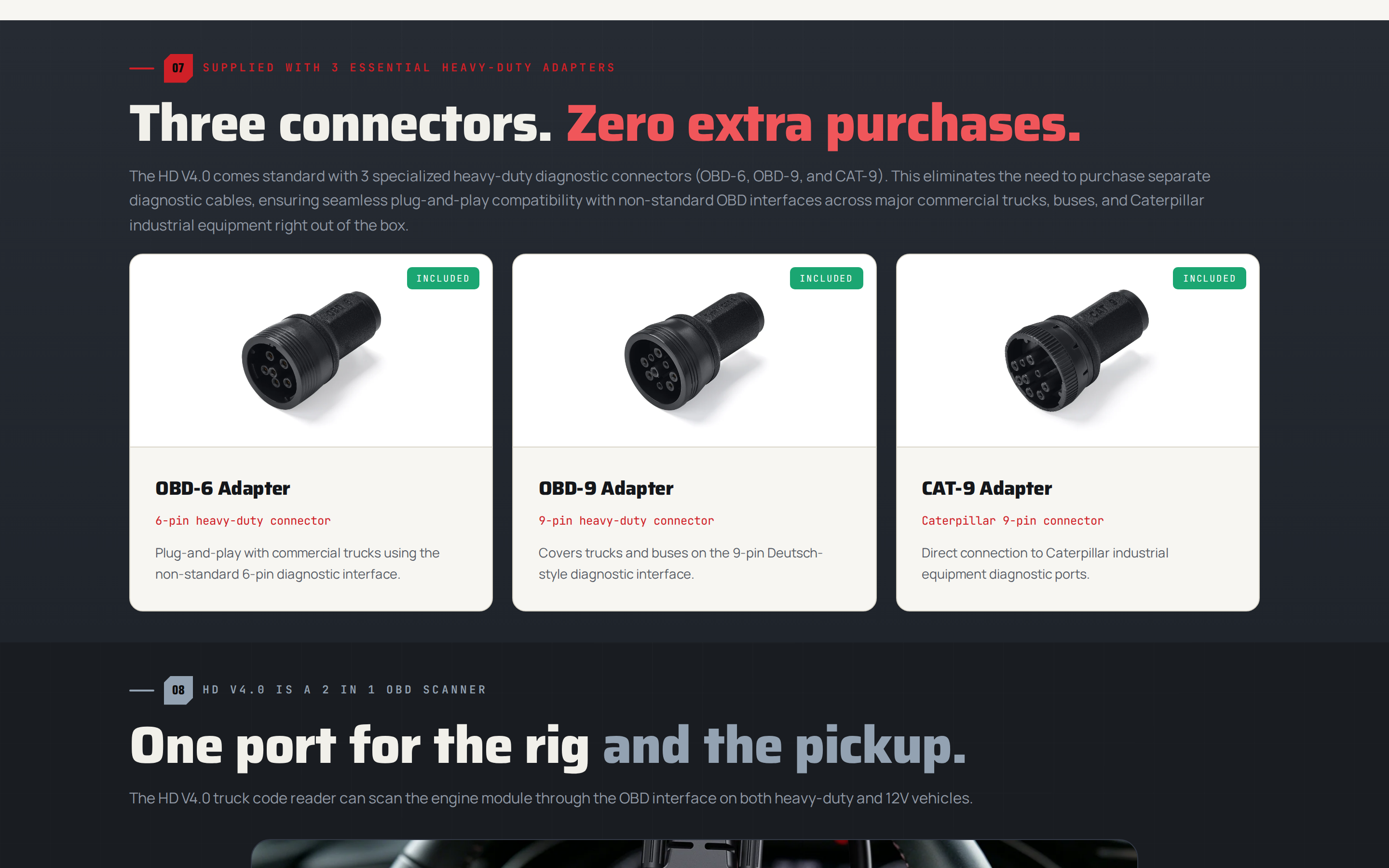

Three adapters in the box

A heavy truck does not use the 16-pin car port. Older trucks use a 6-pin or 9-pin round connector, and Caterpillar equipment has its own plug. The HD V4.0 includes OBD-6, OBD-9 and CAT-9 adapters, which saves buying cables one at a time.

The page also says the tool scans 12V passenger vehicles through the same standard port, which makes it useful for the pickup parked beside the rig.

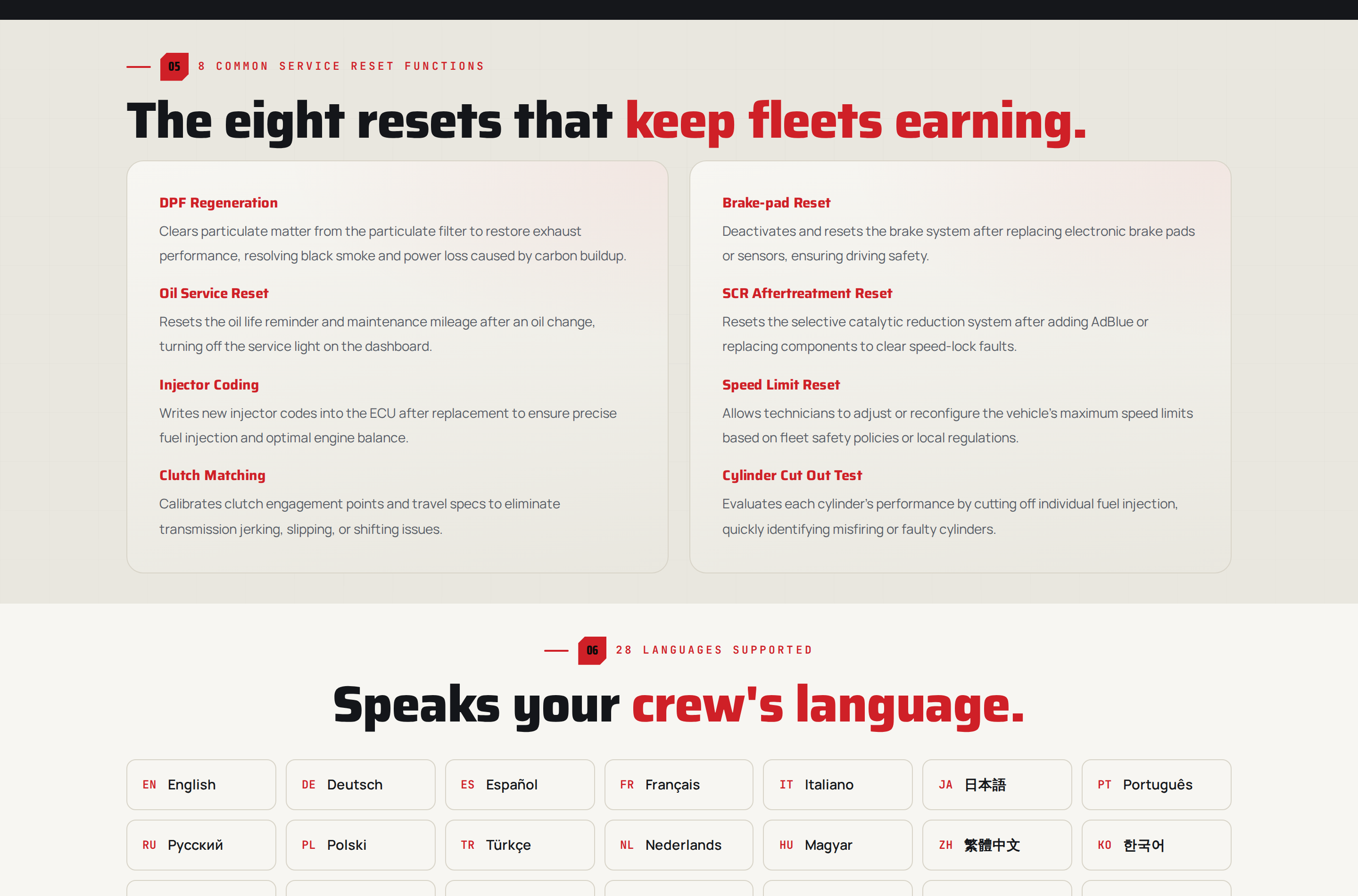

Eight resets, and what they cost you elsewhere

A reset is a maintenance routine the tool runs after a repair so the truck's computer accepts the change. The V4.0 lists eight: DPF regeneration, oil service reset, injector coding, clutch matching, brake pad reset, SCR aftertreatment reset, speed limit reset and a cylinder cut-out test.

The SCR reset is the one most owners ask about. After refilling the diesel exhaust fluid tank or replacing a component, some trucks lock the speed until the system is reset. The cylinder cut-out test helps find a misfire by turning off one injector at a time.

Eight is a short list compared with car tablets. For a small fleet that mostly sees filter, fluid and aftertreatment jobs, it may cover the work. For one that does clutch or brake work on many brands, expect gaps.

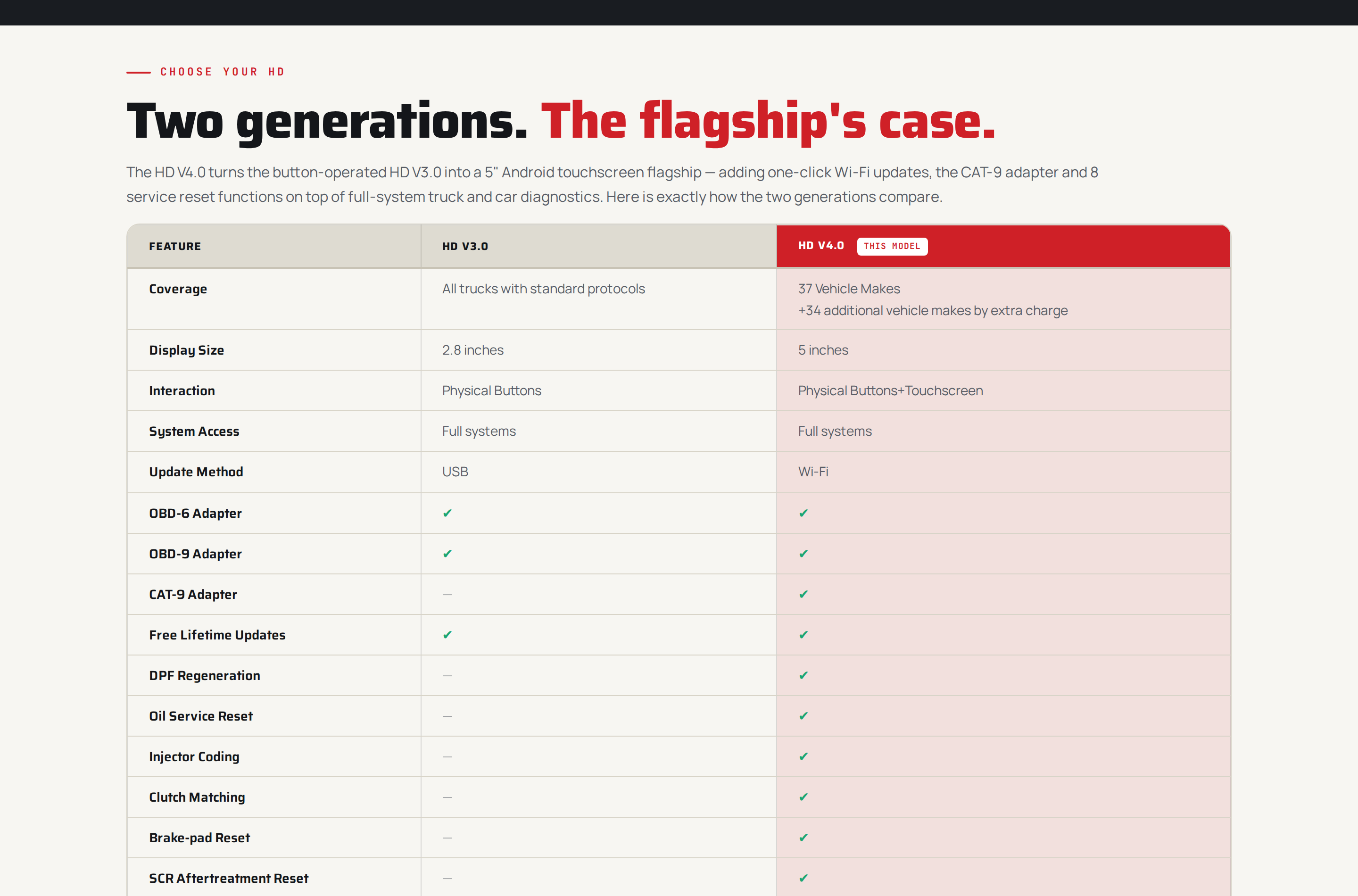

What changed from the V3.0

The maker is clear that the V4.0 replaces a button-operated tool. The V3.0 had a 2.8-inch screen and USB updates and none of the eight resets.

If you find a V3.0 for much less, it can still read codes and live data, but the resets are the reason to choose the newer tool.

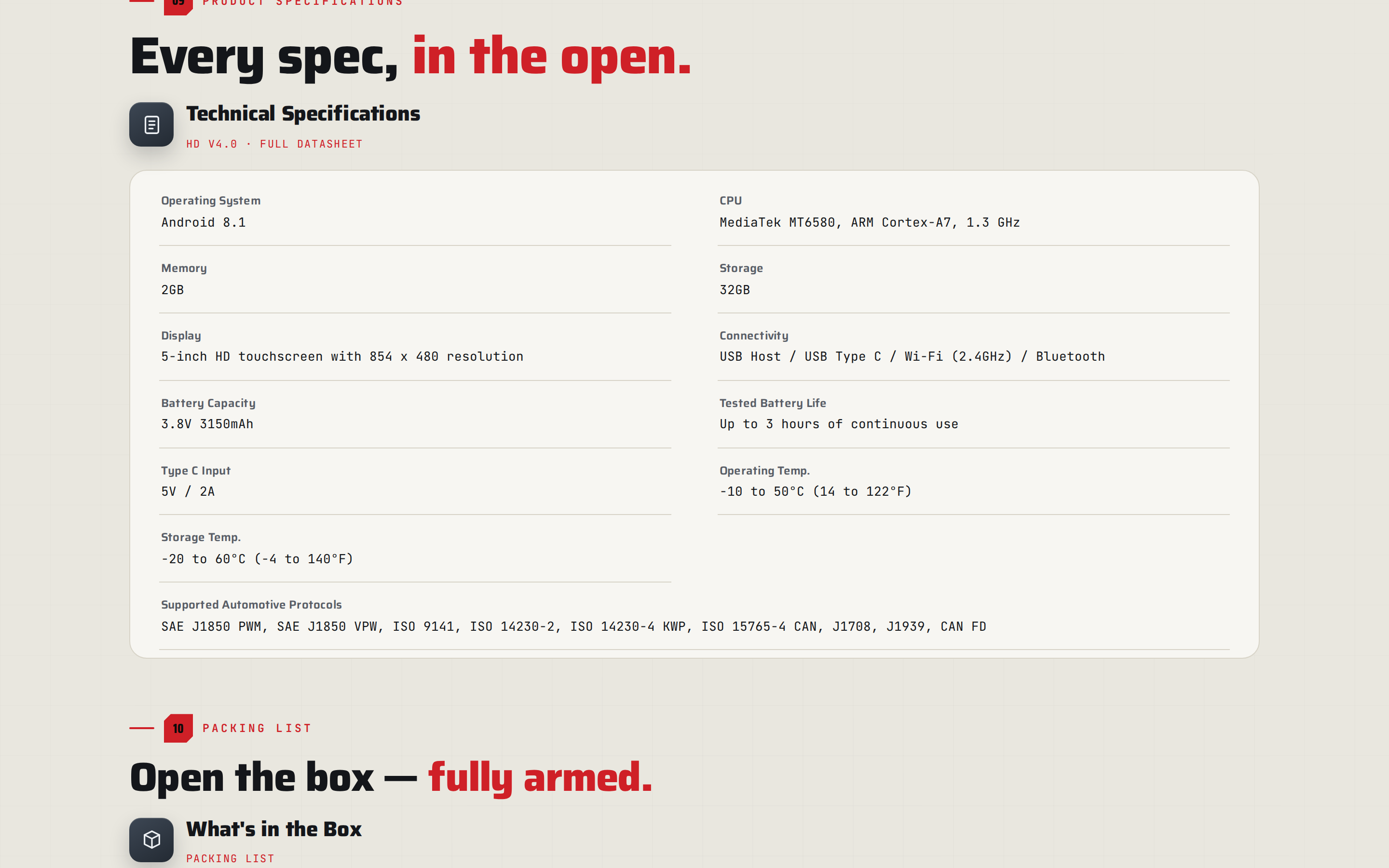

The hardware limits

The V4.0 has a 5-inch screen at 854 by 480, Android 8.1, a 1.3 GHz MediaTek chip, 2 GB of memory and 32 GB of storage. The 3150 mAh battery is rated for about 3 hours, which is half what the maker's car scanners claim.

Protocols include J1939 and J1708, the standards trucks use, and CAN FD. The operating range runs from -10 to 50 C, so a cold yard is fine.

Where the money is saved

The maker says other truck scanners charge hundreds of dollars a year for updates, and that this one never will. That is a claim from the seller, but the logic is easy to check: add three years of renewals to any rival's price and compare. For a fleet of three trucks sharing one tool, a one-time fee is the main reason to consider this model.

Verdict

At $462.95 against a $659.99 list price, the HD V4.0 is a fair first truck tool for an owner-operator or a fleet of a few units. Buy it if your engine brand is on the pre-installed list and your jobs are filters, aftertreatment and fault finding. Spend less if you only need to read codes on one truck. Look at a larger heavy-duty platform if you service many brands or need deep module programming.

We score it 7.0 out of 10. The adapters and the lack of a subscription earn it, and the battery, the paid extensions and the thin independent evidence hold it back.
