iCarsoft CR Max P Review: Topology Mapping and Active Tests for $599.99

A basic Bluetooth code reader tells you a light is on. A bi-directional scan tool lets you talk back to the car: command a fuel pump, cycle an ABS motor, and see whether the part answers. The CR Max P is iCarsoft's argument that this should cost $599.99 rather than a four-figure shop tablet, and that a home mechanic can use it.

We read the maker's documentation line by line and compared it with the one independent write-up we could find. We did not bench it ourselves for this piece, so where a claim below is iCarsoft's, we say so.

What the topology map is for

The headline feature is a visual topology map. After the tool reads the VIN, it draws every control module it finds as a network, with fault and communication status shown on each one, and you tap a module to go straight into its diagnostics. iCarsoft says it works on supported vehicles only, and that availability varies by make, model year and ECU configuration.

Why a DIYer should care: on a car with thirty modules, a dead one often throws "lost communication" codes in several other modules. A flat list of faults makes that look like five problems. A map makes it look like one module that has dropped off the bus. The independent reviewer we found at I Am Car Hacker called it a feature they had not seen anywhere else, and recommended the tool mainly for VAG coding and used-car checks.

Bi-directional control, defined once

Bi-directional (also called active test) means the scanner sends a command to a component instead of only listening. The CR Max P page lists tests such as cycling the ABS pump motor, running window regulators, activating the fuel pump, opening the throttle, driving the EGR valve, cutting individual injectors, switching cooling fans and stepping transmission solenoids. The count is "22+ active tests", and the page admits the list varies by vehicle.

That is the feature that separates this tablet from a $100 reader. Before you replace a $250 fuel pump, you can ask the car to run it. If it hums, you look at wiring and the relay instead.

Service resets and coding

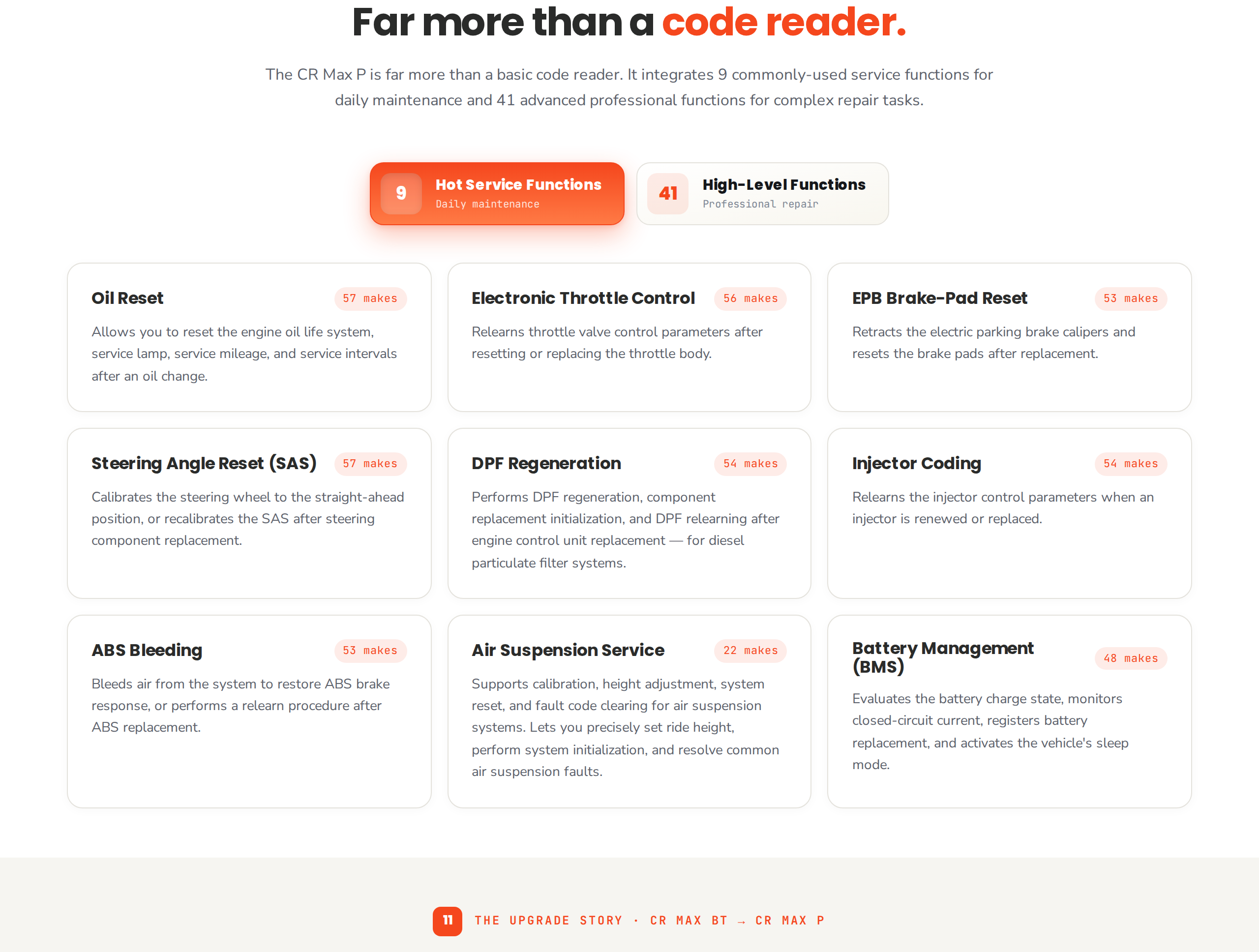

The page lists 50 service functions and shows the daily ones: oil reset, throttle relearn, electric parking brake pad retraction, steering angle reset, air suspension height and calibration, and battery management (registering a new battery, checking closed-circuit current, sleep mode). DPF, injector coding, ABS bleeding and TPMS resets also appear in the comparison table.

ECU coding is promised across "8+ major car groups". Coding is where scanners differ most, and it is also where a wrong change can leave a module misbehaving. One third-party write-up noted that a Kingbolen K8 Pro reached hidden BMW settings the CR Max P could not, so if BMW coding is your whole reason to buy, check before you do.

The hardware you actually hold

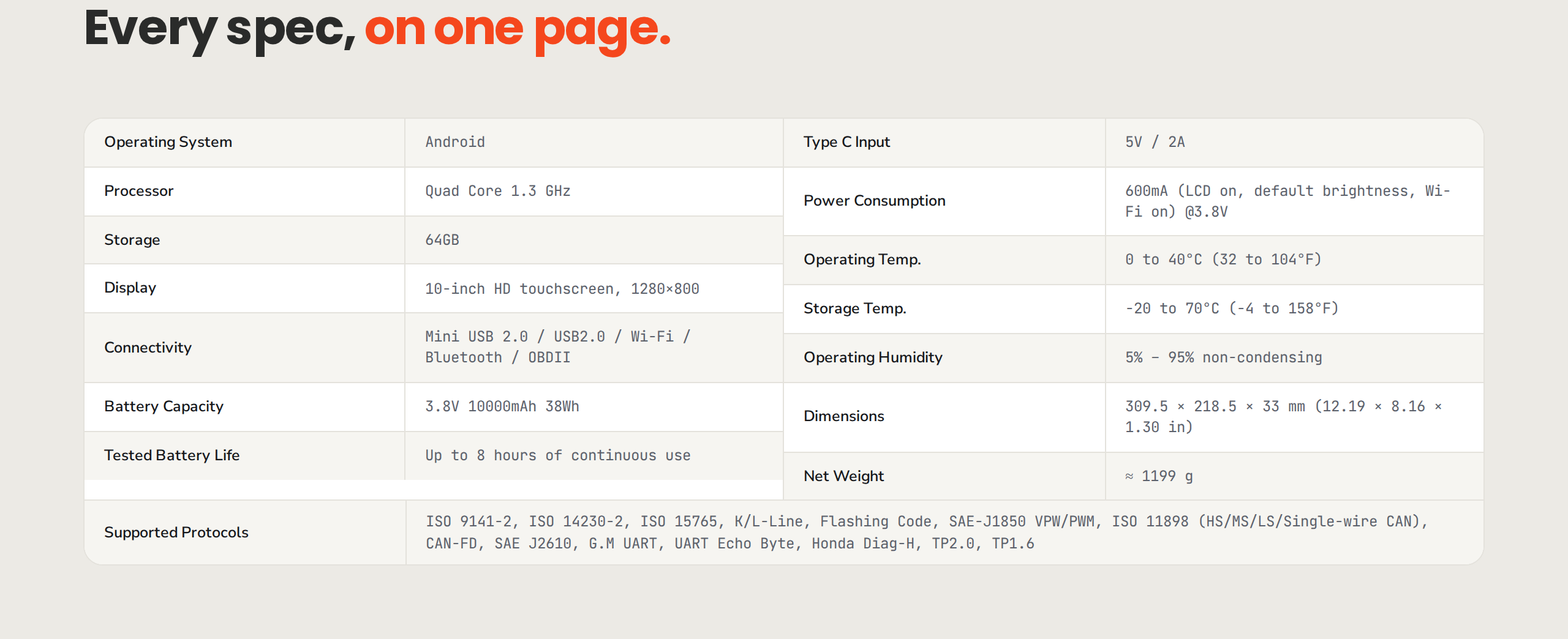

It is a 10-inch Android tablet, 1280 x 800, with a 1.3 GHz quad-core processor, 64 GB of storage and a 10,000 mAh battery rated for about 8 hours. It weighs roughly 1.2 kg (1199 g). The wireless VCI (the module that plugs into the OBD port) talks to the tablet by Bluetooth or Wi-Fi, so you can walk around the car with it. It supports CAN-FD and DoIP, the newer protocols that recent models use, and the box includes an RJ45 cable and an F-chassis cable for them.

It is heavy for a one-handed tool. Most people will prop it on a fender, but anyone used to a 380 g handheld will notice.

Against its own family

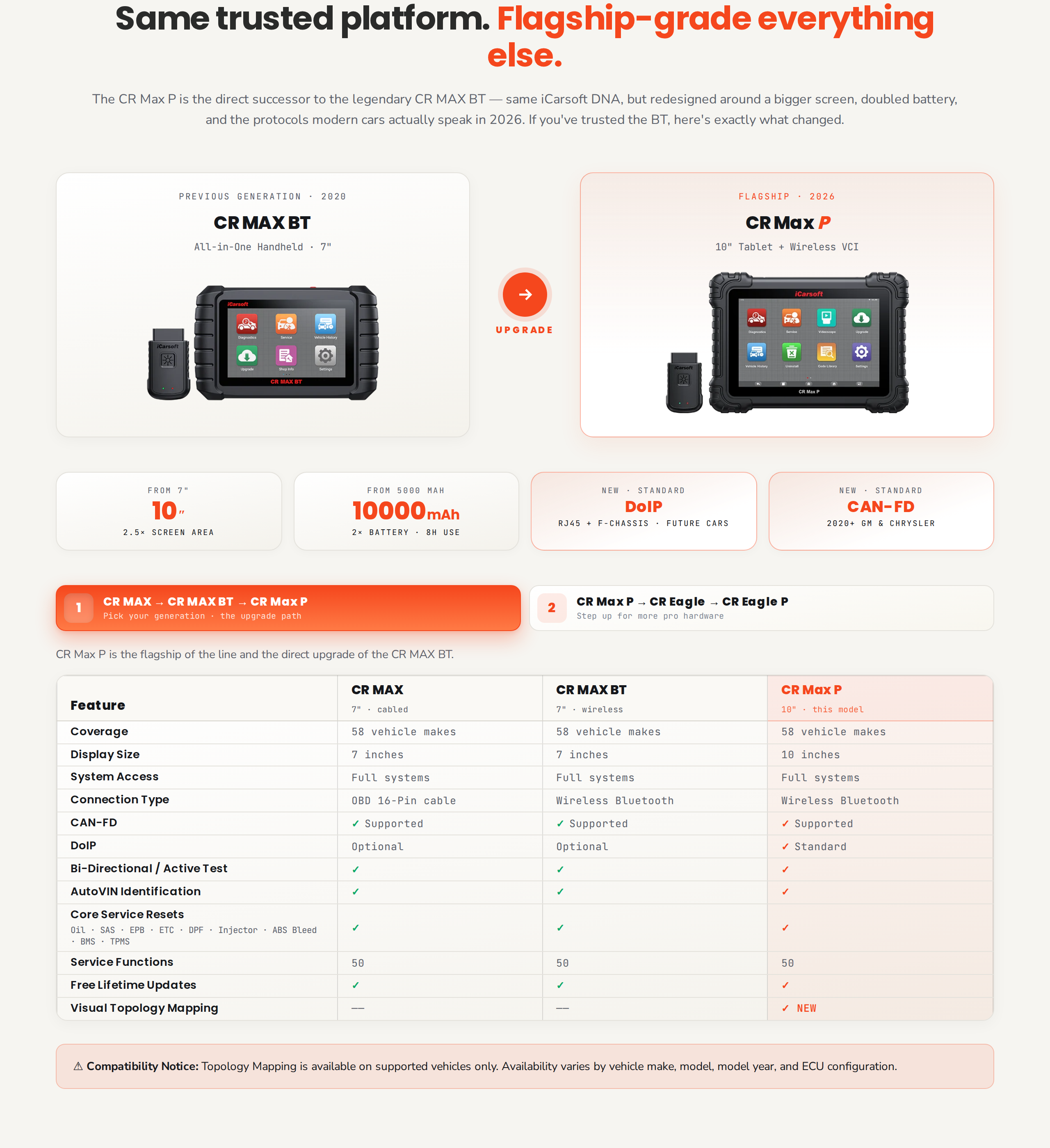

The step down is the CR MAX BT, a 7-inch, 5,000 mAh predecessor that iCarsoft says the Max P replaces. The Max P doubles the battery, brings in topology mapping and adds the newer protocols.

The step up is the CR Eagle P, which the maker says shares the same diagnostic engine and adds hardware: TPMS sensors, a larger set of older-car adapters, a videoscope, and 128 GB of storage. That is a package change, not a software one, so a home mechanic gains little from paying double.

Costs and limits

The list price shows $819.99 struck through and $599.99 current. Software updates are free for life over Wi-Fi, with no yearly fee, and there is a one-year warranty. Mercedes before 2003, BMW before 2001 and older Sprinter vans need optional adapters sold separately. Free updates also do not mean every function exists on every car: the maker's own notices say service functions vary by brand, model, year and ECU.

Our verdict

For the person stepping up from a basic scanner, this is the sweet spot of the range. You get active tests, a deep service list, coding on some brands and a map of the car's modules for a price iCarsoft says pays for itself in three or four dealer scans at $150 to $250 each. It is not for a shop that wants a full set of older-car adapters in the box, and it is not for someone who only clears codes twice a year. Check your own make against the maker's brand list before you pay.
