iCarsoft CR Elite P Review: Four-System Touchscreen Scanner for Family Cars

Most families own more than one car, and most home garages have the same three jobs on repeat: a check-engine light, a brake pad swap and an oil reminder that will not go away. The CR Elite P is iCarsoft's cheapest touchscreen Wi-Fi scanner, at $299.99, and it is built around that kind of household.

The price comes with a clear trade. It reads four systems, not the whole car. Whether that is enough depends on what your cars actually throw at you.

We worked from iCarsoft's product page and spec sheet, and from the thin independent coverage that exists. Resellers mostly repeat the maker's copy, so treat the function claims below as iCarsoft's, not as bench results.

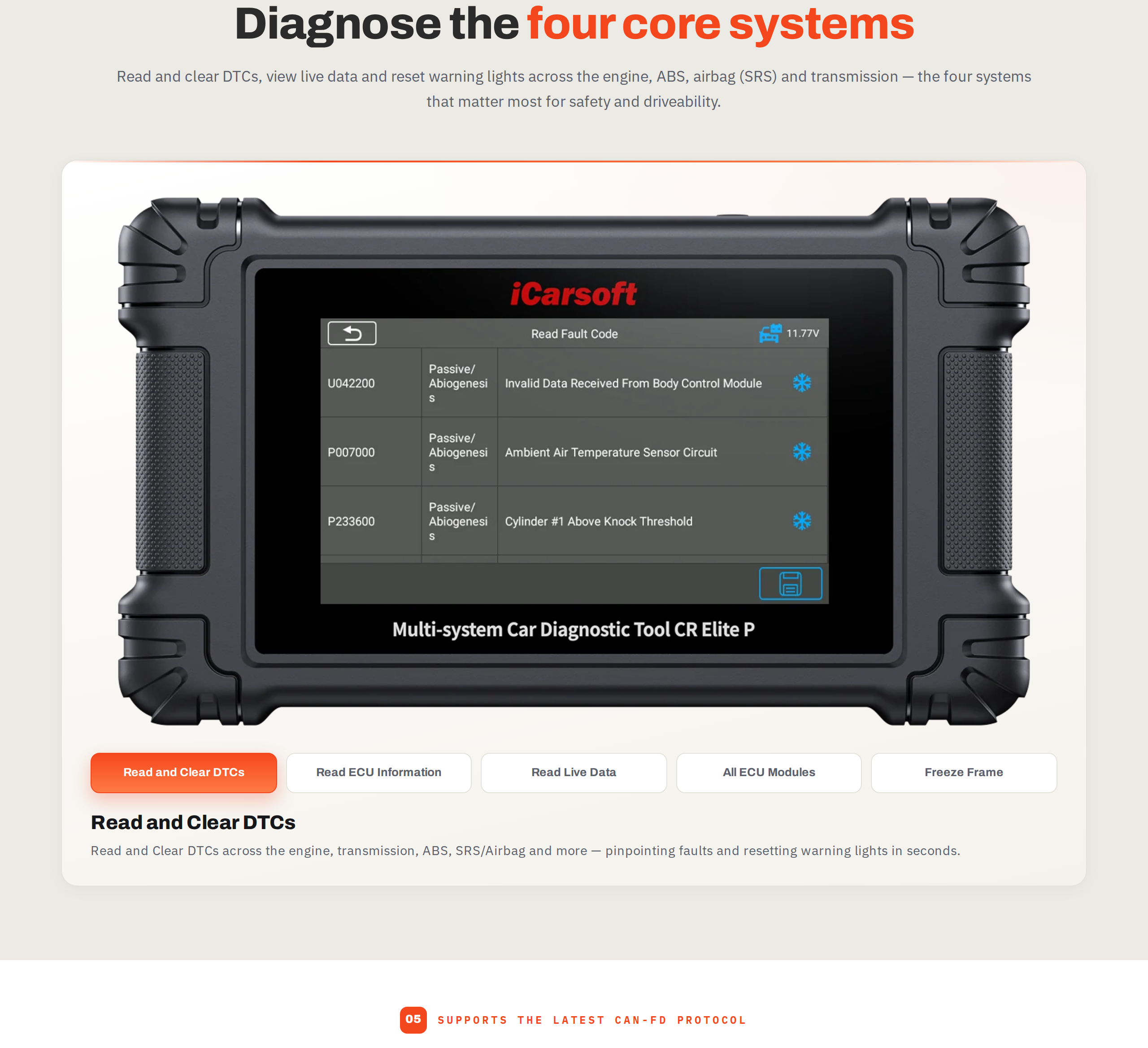

The four systems, and what sits outside them

The CR Elite P covers engine, transmission, ABS and airbag (SRS). Those are the systems behind most warning lights and most safety-critical repairs. It does not walk the body computer, climate control, seats or infotainment, which a full-system tablet would.

For a DIYer, that line falls in a predictable place. A parking sensor fault, a door module that will not unlock or a dash warning from the body control unit is outside the four. A misfire, a wheel speed sensor code, a gearbox limp mode or an airbag light is inside them.

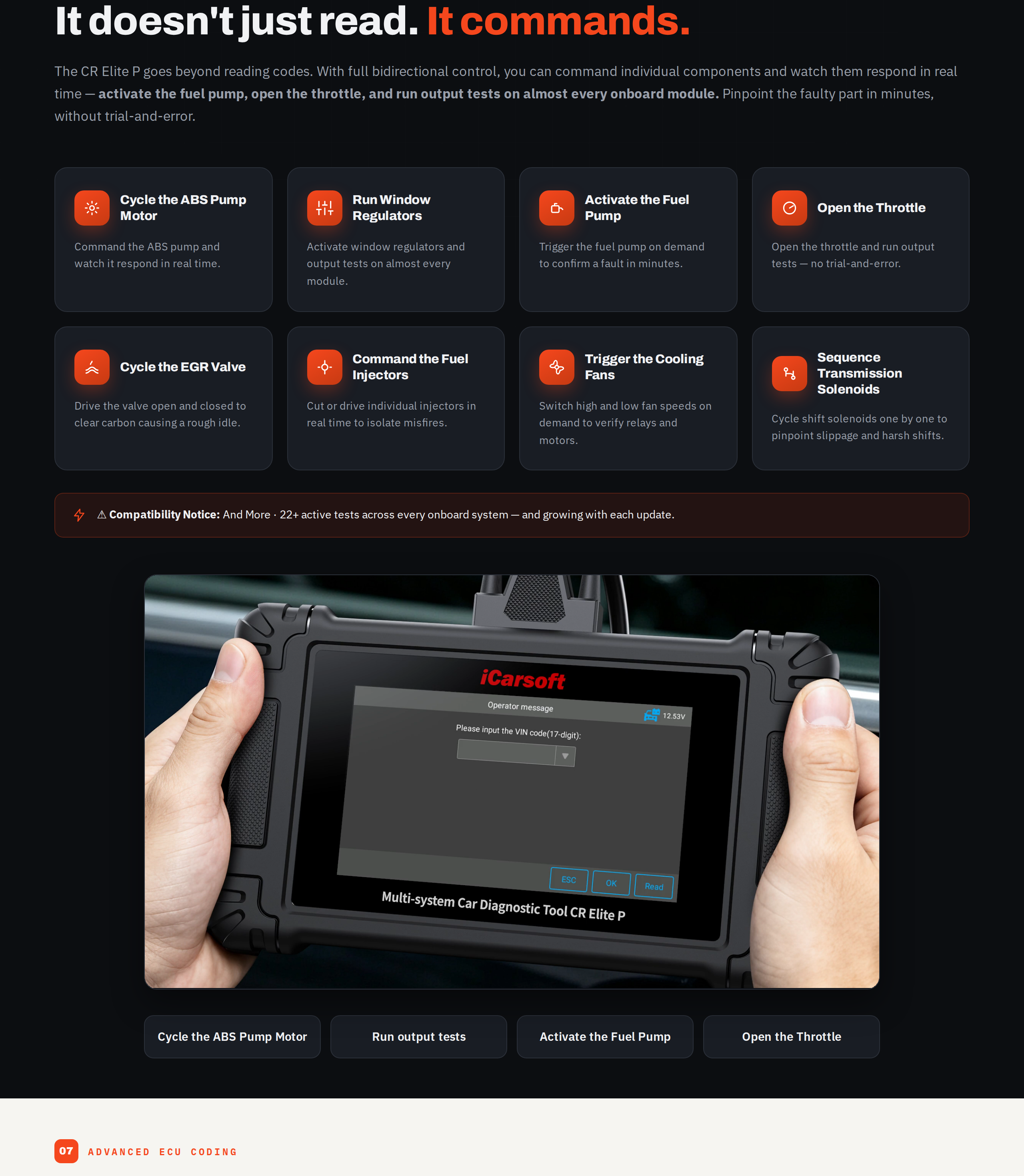

Commands, not just codes

Even at this price the tool is bi-directional: it can send an order to a part and show whether the part obeys. The page lists the ABS pump motor, window regulators, fuel pump, throttle, EGR valve and individual fuel injectors, and says "22+ active tests" in all.

The FAQ adds a detail worth knowing: some SRS and ABS codes can only be cleared after a bi-directional test has been completed. So the feature is not a luxury here, it is part of finishing the job.

Fifty service functions across two or three cars

iCarsoft counts 9 everyday functions and 41 advanced ones. The everyday group carries a per-make count for each function:

• Oil reset: 57 makes
• Throttle relearn: 56 makes
• Steering angle reset: 54 makes
• Electric parking brake pad reset: 53 makes
• Battery registration: 48 makes
• Air suspension: 22 makes

Those numbers are how many brands the maker says it supports, not a promise for your model year. If you service three cars, look up each one on the compatibility list before you order. The page itself warns that functions vary by brand, model, year and ECU configuration.

ECU coding is also on the list, in the sense of module repair and adaptation on supported cars. We would treat it as an extra, not a reason to buy.

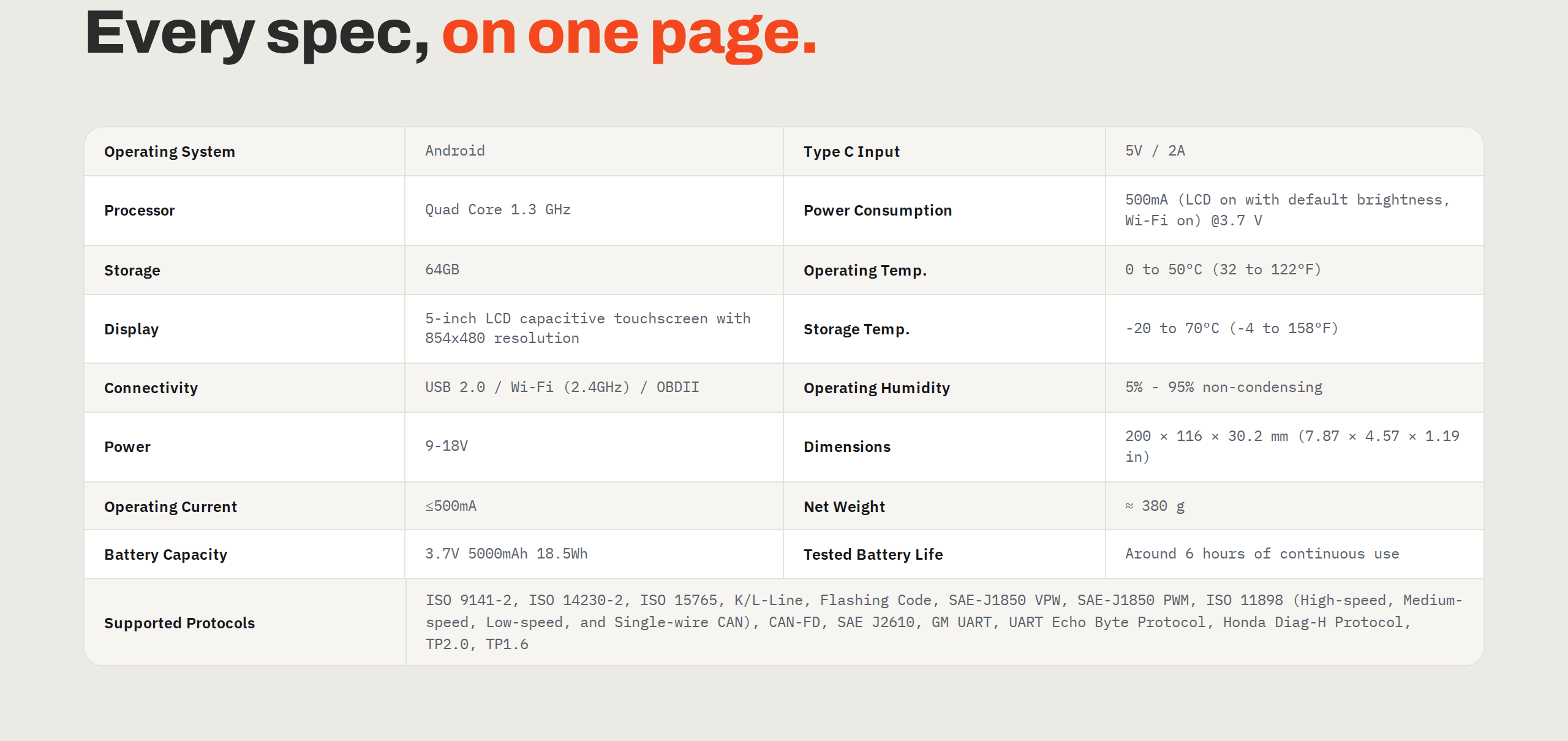

The hardware: small, light, wired

Here the CR Elite P feels like a smartphone grown up a little. The screen is 5 inches at 854 x 480, the body is 200 x 116 x 30 mm and the weight is about 380 g. Battery is 5,000 mAh, rated for around 6 hours of continuous use. It plugs into the OBD port by cable (it has no wireless link to the car), and it joins your Wi-Fi network only to download updates.

The low-resolution screen is the compromise to weigh first. At 854 x 480 it shows far fewer rows of live data than a 10-inch tablet, so expect more scrolling through long code lists. In return the tool fits a glove box, which is where a family-car scanner should live.

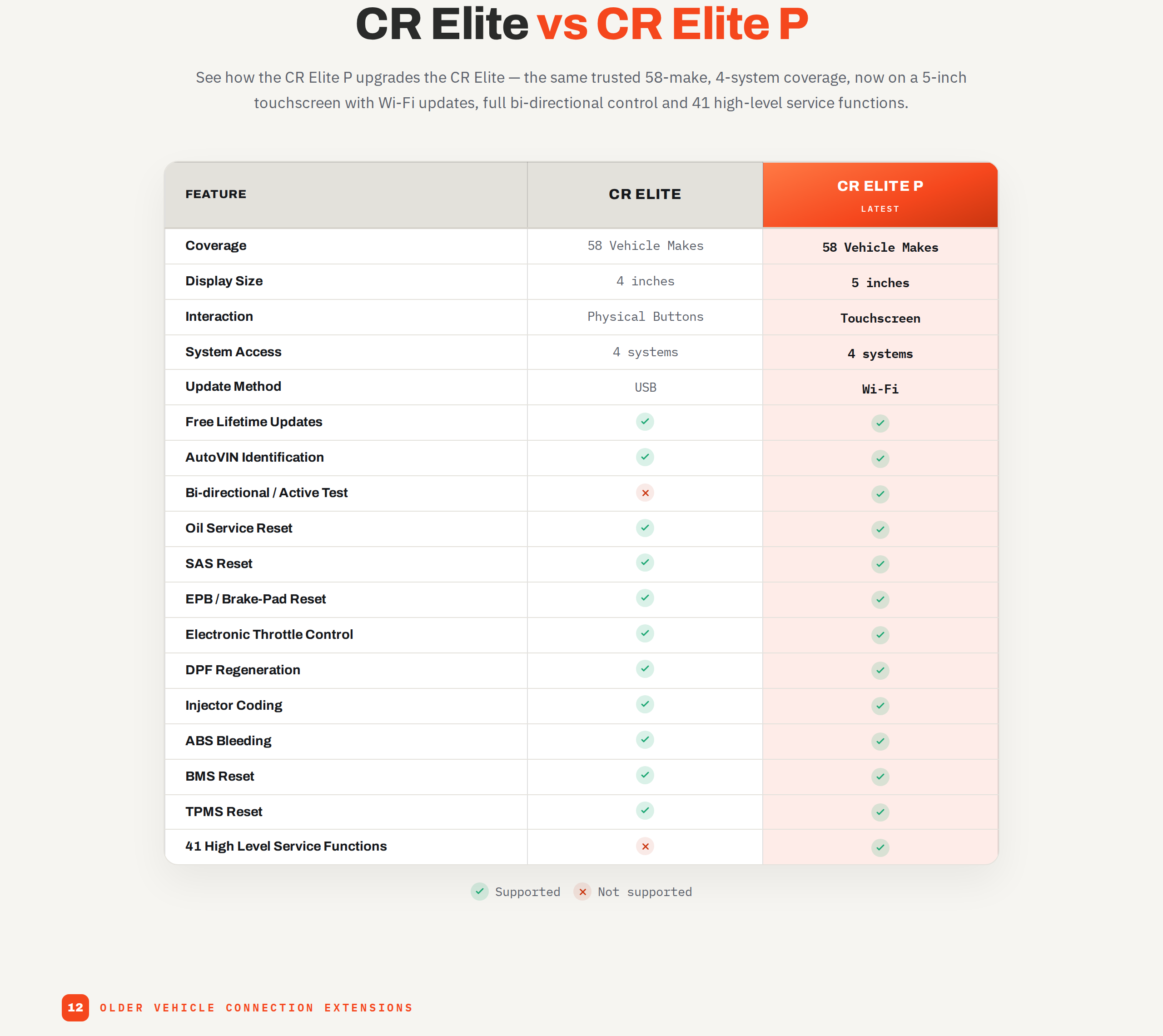

Versus the older CR Elite

The earlier CR Elite had a 4-inch screen with physical buttons and updated over USB from a PC. The new one adds touch, Wi-Fi updates, full bi-directional control and the 41 higher-level functions, according to iCarsoft's comparison.

If you are shopping for a first scanner and see the older model discounted, the missing bi-directional control is the deciding difference. Updates are free for life on the new one, with no yearly fee, and the warranty runs one year.

Who should buy it

Buy it if your cars are mainstream, your jobs are brakes, sensors, throttle bodies and oil resets, and you want to confirm a part before you buy it. It is a good fit for someone leaving a $30 code reader behind. Skip it if you chase body-module or comfort-system faults, or if you want a bigger screen. At $299.99 it is the cheapest honest way into bi-directional control in the iCarsoft range, and its four-system limit is the cost of that price, not a flaw in the idea.
